Autel GBOX 3 Key Programming Accessory Key for Mercedes-benz and BMW, Working with Autel KM100/ IM508/ IM608/ OTOFIX IM1/ IM2

$141.56 USD

~~$0.00 USD~~ $141.56 USD

Sale Sold out

SPECIFICATIONS

Brand Name: Autel

Certification: CE

Electronic: No

External Testing Certification: ce

Function: For Mercedes Benz All Keys Lost,For BMW DME / DDE ISN reading and writing

Hardware Version: Newest

High-concerned chemical: None

Is Batteries Included: No

Item Height: 9

Item Length: 20

Item Type: Auto Key Programmer,Key Programming Tool

Item Weight: 0.76

Item Width: 15

Material: Plastic+ABS

Model Name: Autel G-BOX3

OBD Interface: CAN, EOBD, OBD, OBDII

OEM NO.: other

Origin: Mainland China

Power (W): No

Software Version: Newest

Type: Key Programmer

Use: Not Telecommunication

Use With: Autel MaxiIM IM608/IM508

Voltage: 12 V (9-24 V)

Warranty: 1 Year

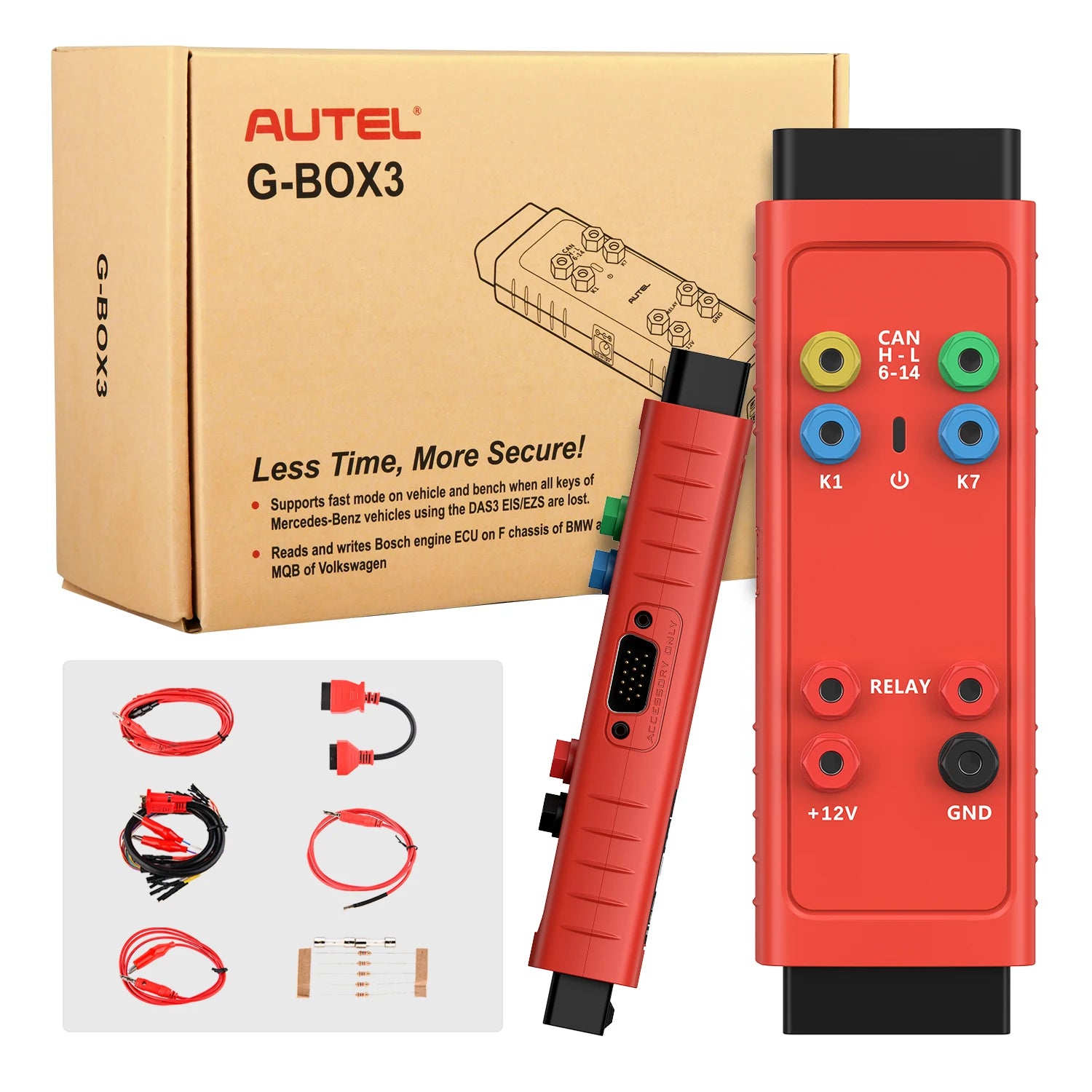

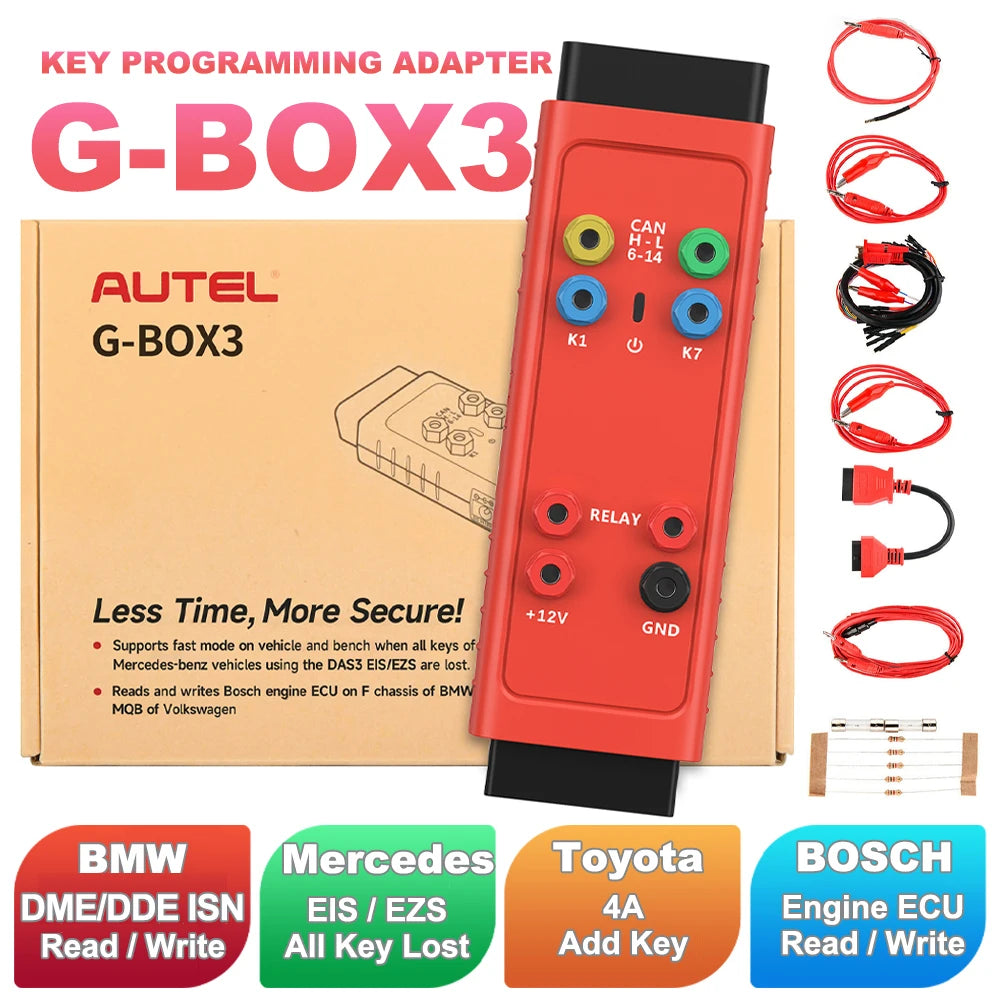

About Autel G-BOX3:

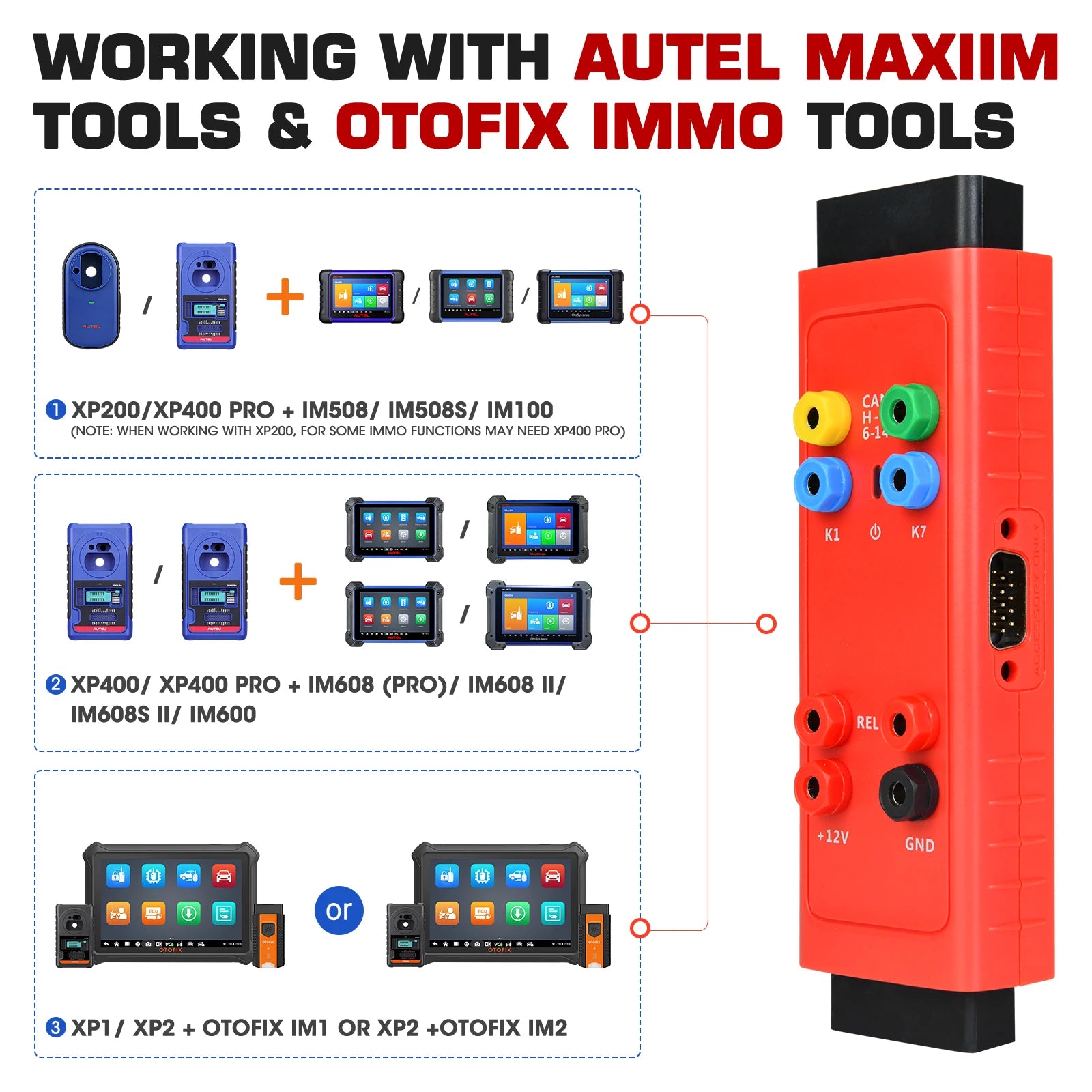

1. G-Box 3 Work with IM608 / IM508 / KM100 / XP400PRO

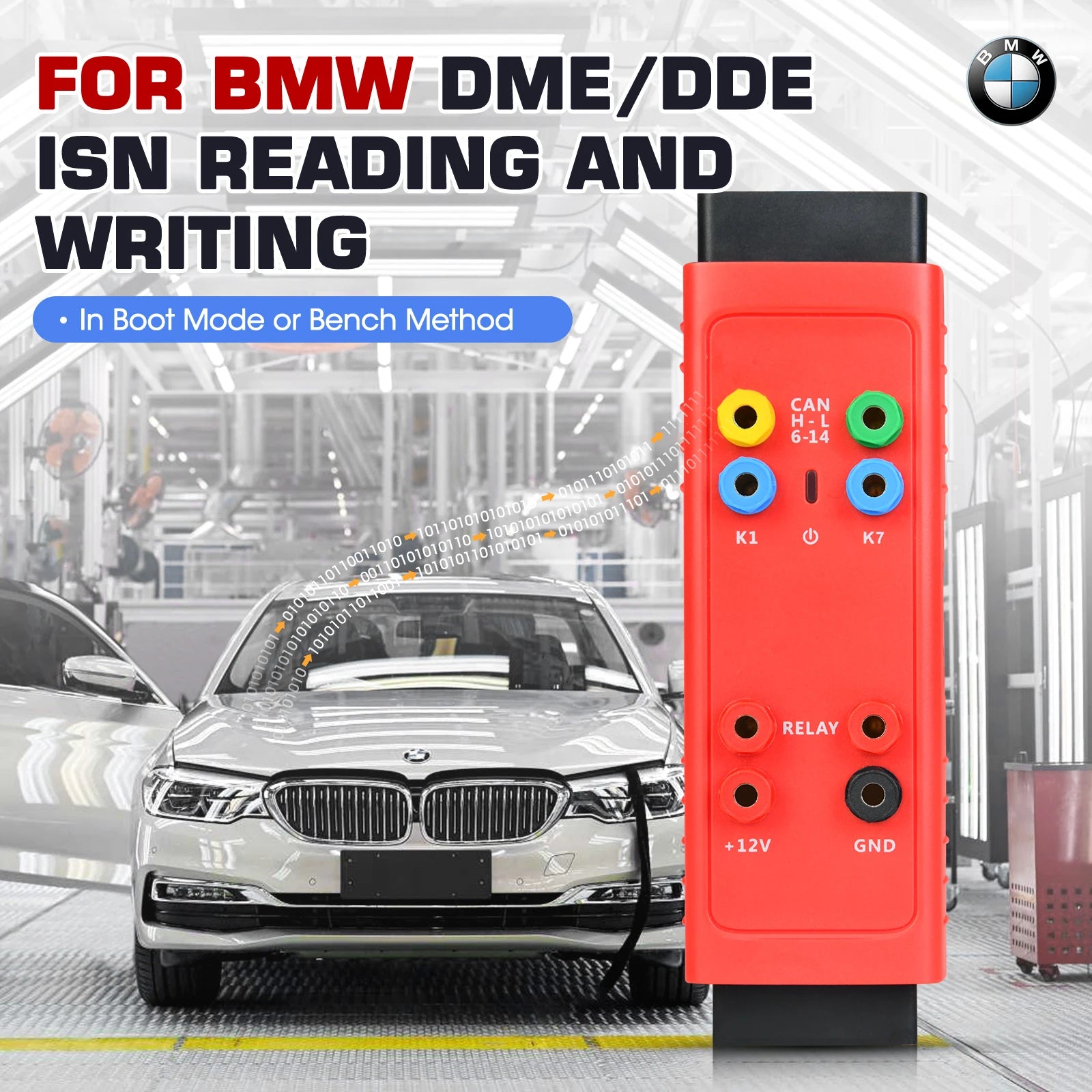

2. For BMW DME/ DDE ISN Reading and Writing in Boot Mode for 20 Types
(EDC17, MEVD17, MSV90, MSD87, etc)
3. Faster Password Calculation for Mercedes-benz All Key Lost
(W172, W204, W207, W209, W211)
4. Mercedes-benz ECU Data and EIS Password Calculation
5. For Mercedes-benz DAS3 can EIS/ EZS All Keys Lost
6. No Need to Remove and Reinsert the Key for W221 & W164 after 2009 Model
7. No More Repeated Insertions and Removals of IR Simulator for 10 Types of EIS
8. Passport Reading for 9 Type EIS When All Keys Lost on vehicle
9. VAG ECM IMMO data reading & data synchronization for 18 types
(MQB EDC17, MED17, etc)
10. Engine ECU Reading/ Writing for BOSCH MD1/ MG1 (VAG, BMW, PSA, OPEL, etc)

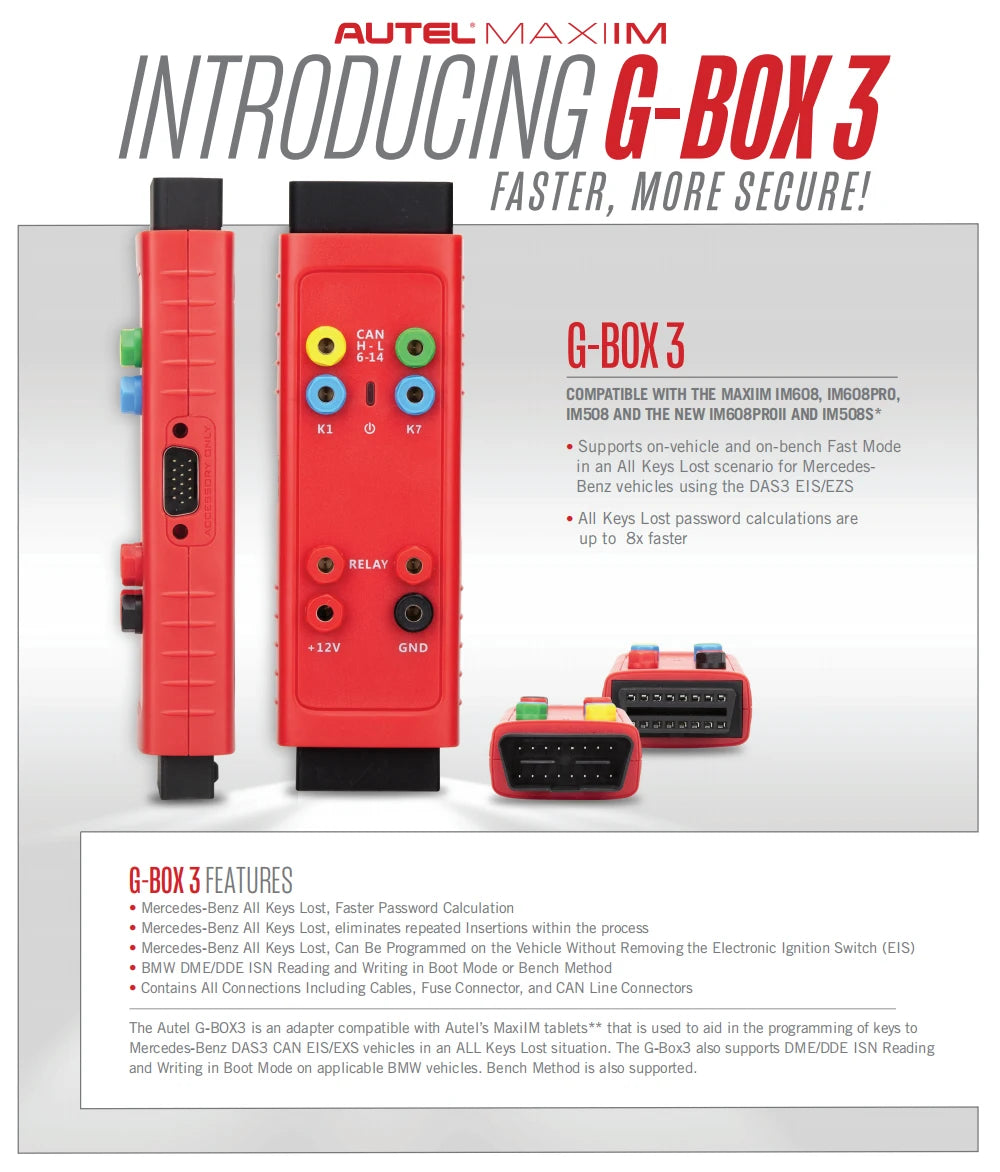

GBOX3 vs GBOX2：

GBOX3 adds the following additional functions on the basis of GBOX2:

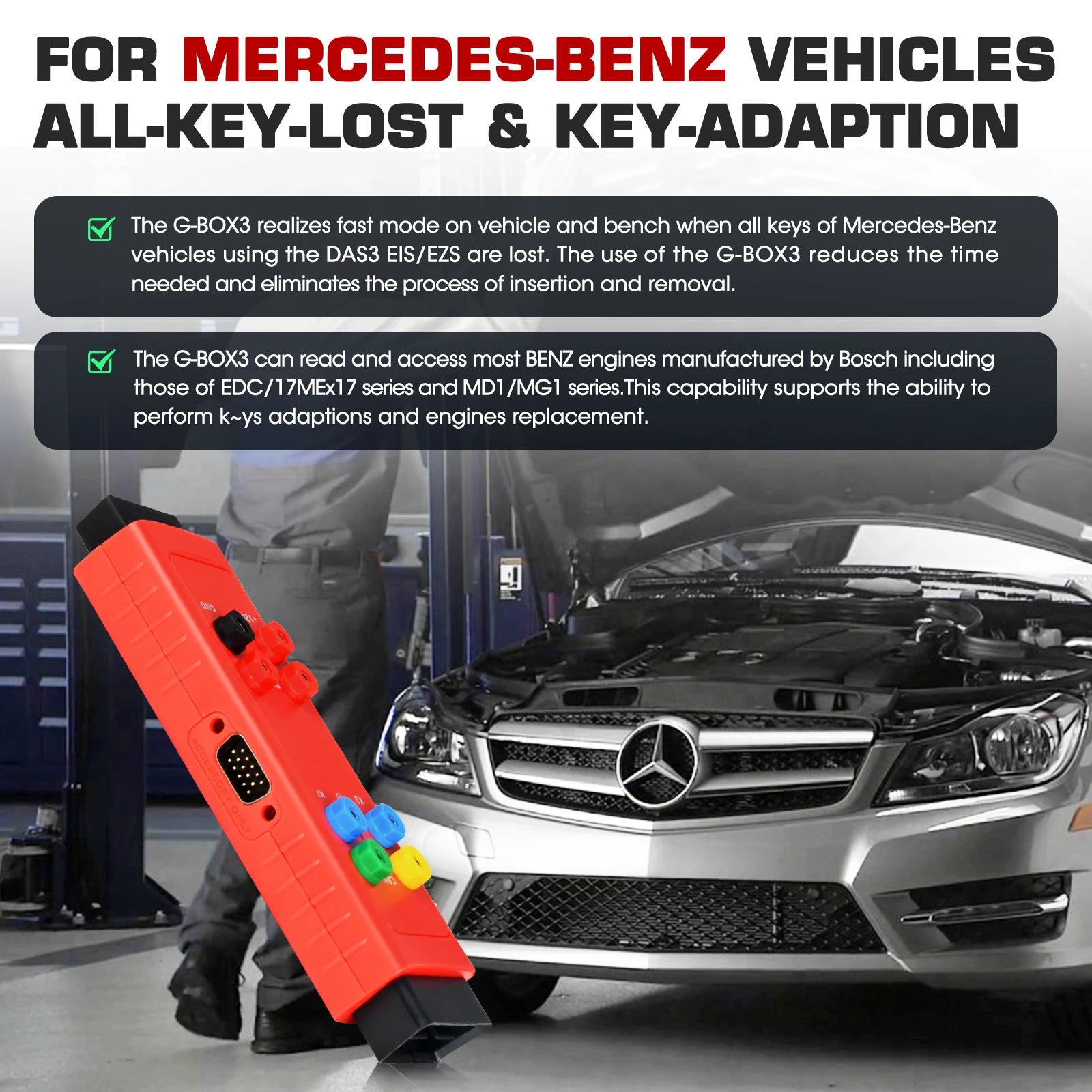

● Supports on-vehicle and on-bench FastMode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS/EZS.
● Bosch engine ECU read and write on BMW F-chassis and Volkswagen MQB vehicles.
● Engine ECU reading/writing for BOSCH MD1/ MG1 (VAG, BMW, PSA, OPEL, etc)

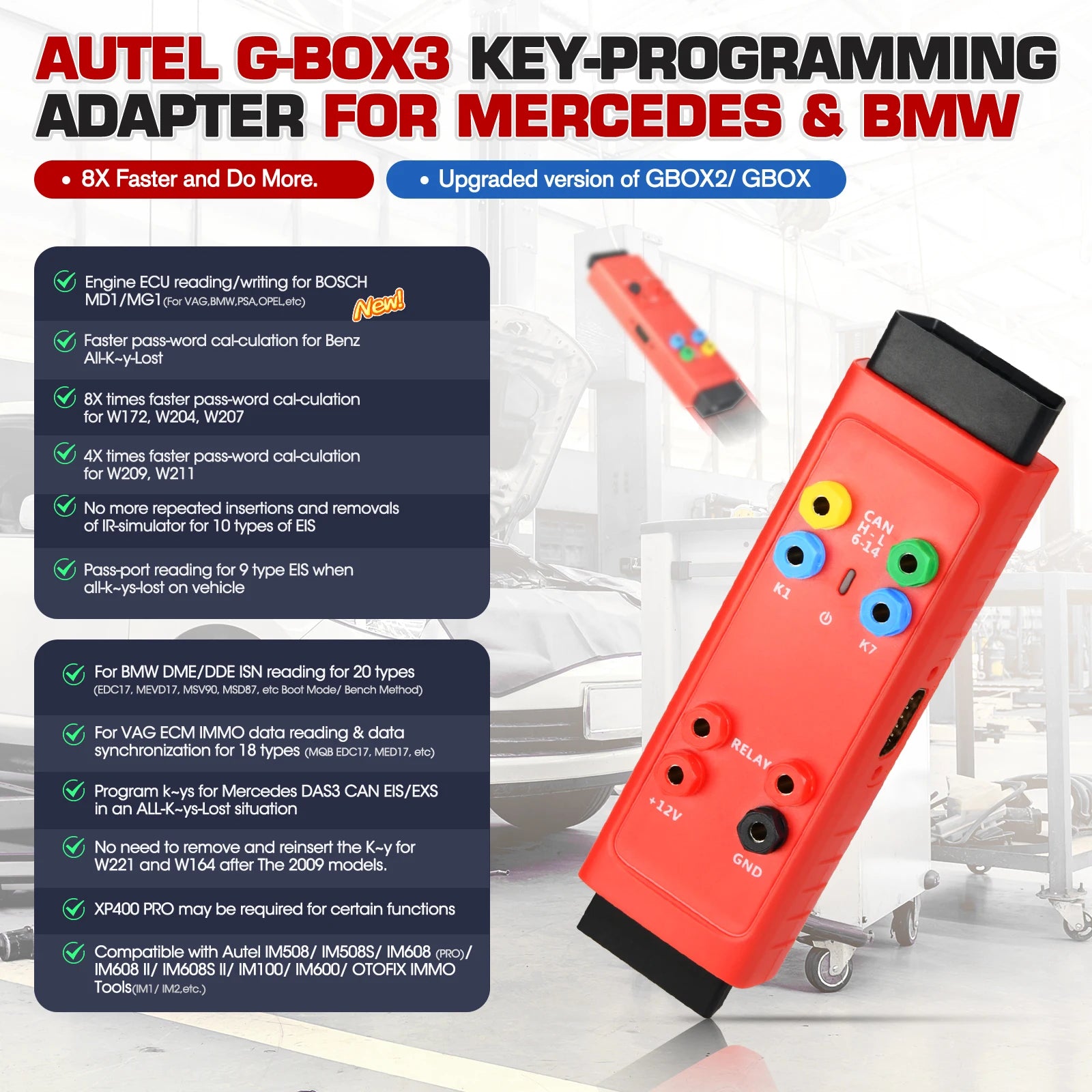

Autel G-BOX3 Description：

● Faster password calculation for Mercedes-benz All Key Lost
● 8X times faster password calculation for W172, W204, W207
● 4X times faster password calculation for W209, W211
● No more repeated insertions and removals of IR simulator for 10 types of EIS
● Passport reading for 9 type EIS when all keys lost on vehicle
● BMW DME/ DDE ISN reading for 20 types (EDC17, MEVD17, MSV90, MSD87, etc)
● VAG ECM IMMO data reading & data synchronization for 18 types (MQB EDC17, MED17, etc)
● Engine ECU reading/writing for BOSCH MD1/ MG1(VAG, BMW, PSA, OPEL, etc)

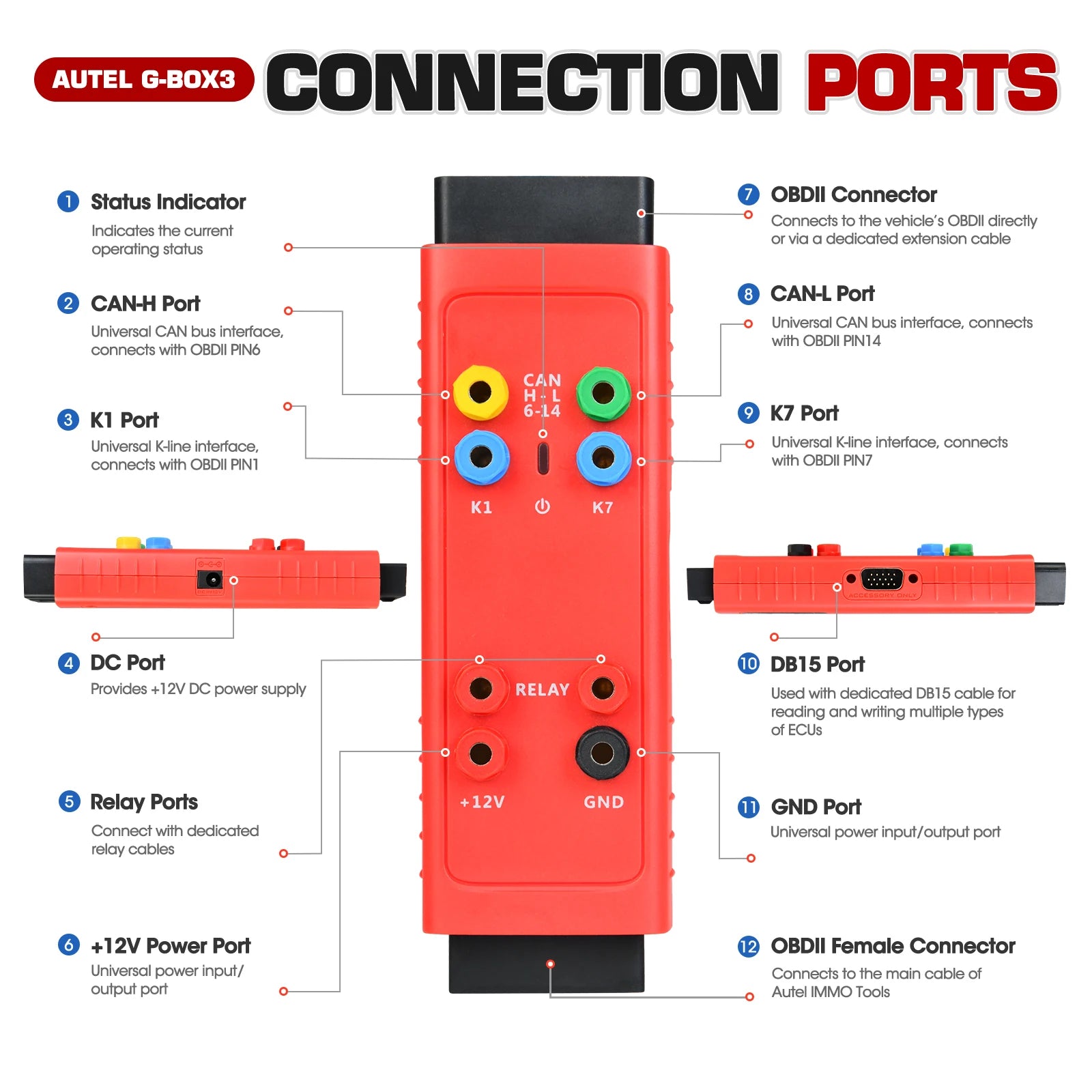

How does Autel G-Box Work?

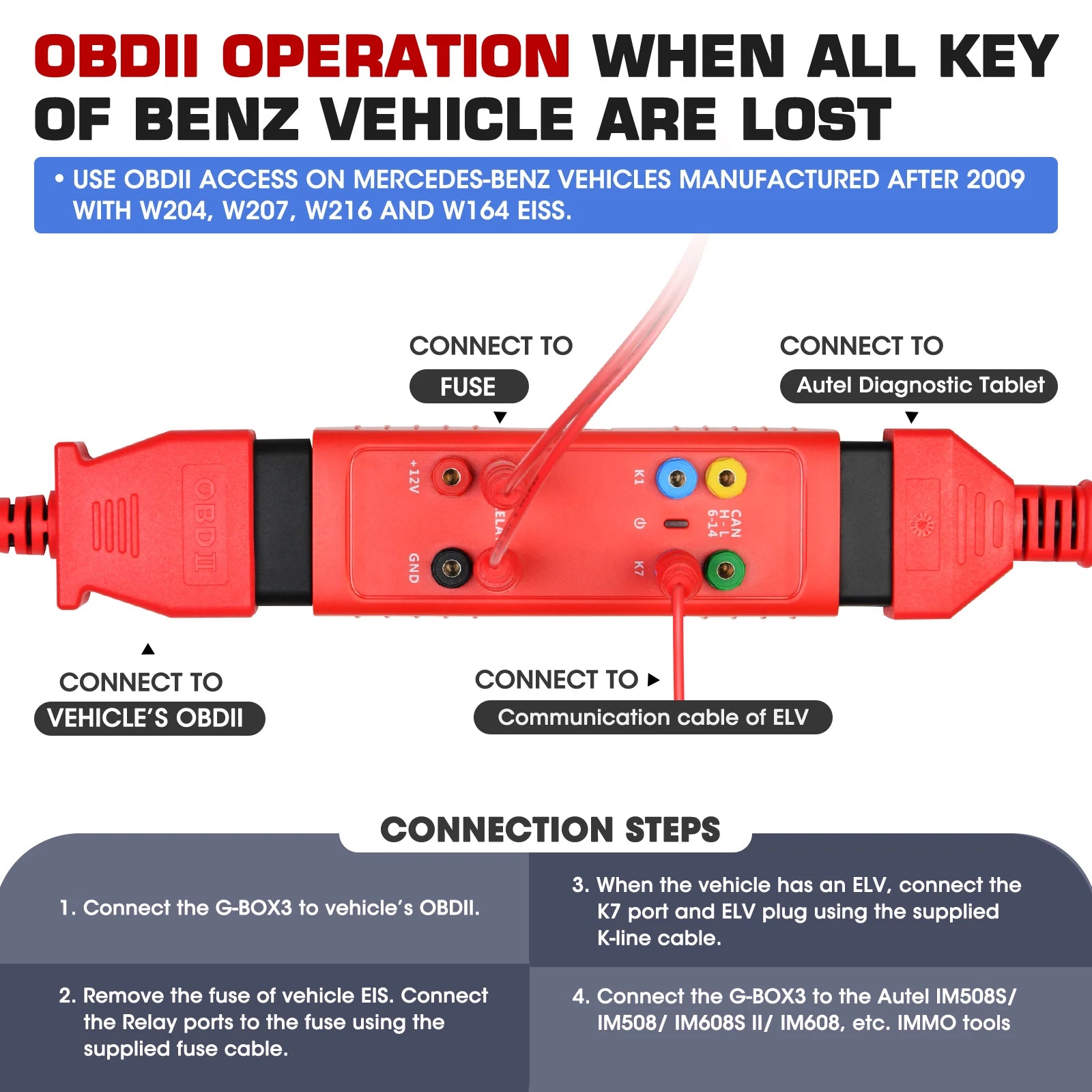

A. OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost

(This method is suitable for Mercedes-Benz W204 , W207, W216 and W164 EISs after the year 2009)
1. Connect the G-Box to vehicles's OBDII
2. Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
3. When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
4. Connect the G-Box to the Autel Diagnostic Tablet

B. Desktop Operation When All Keys of Mercedes-Benz Vehicle are Lost

(This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet.)
1. Connect the G-Box to the Mercedes-Benz EIS using the supplied DB15 Cable
2. Connect to the DC port of G-Box using a power adapter (DV 12V)
3. Connect the G-Box to the Autel Diagnostic Tablet
